Monsieur Bidault’s wacky tyres

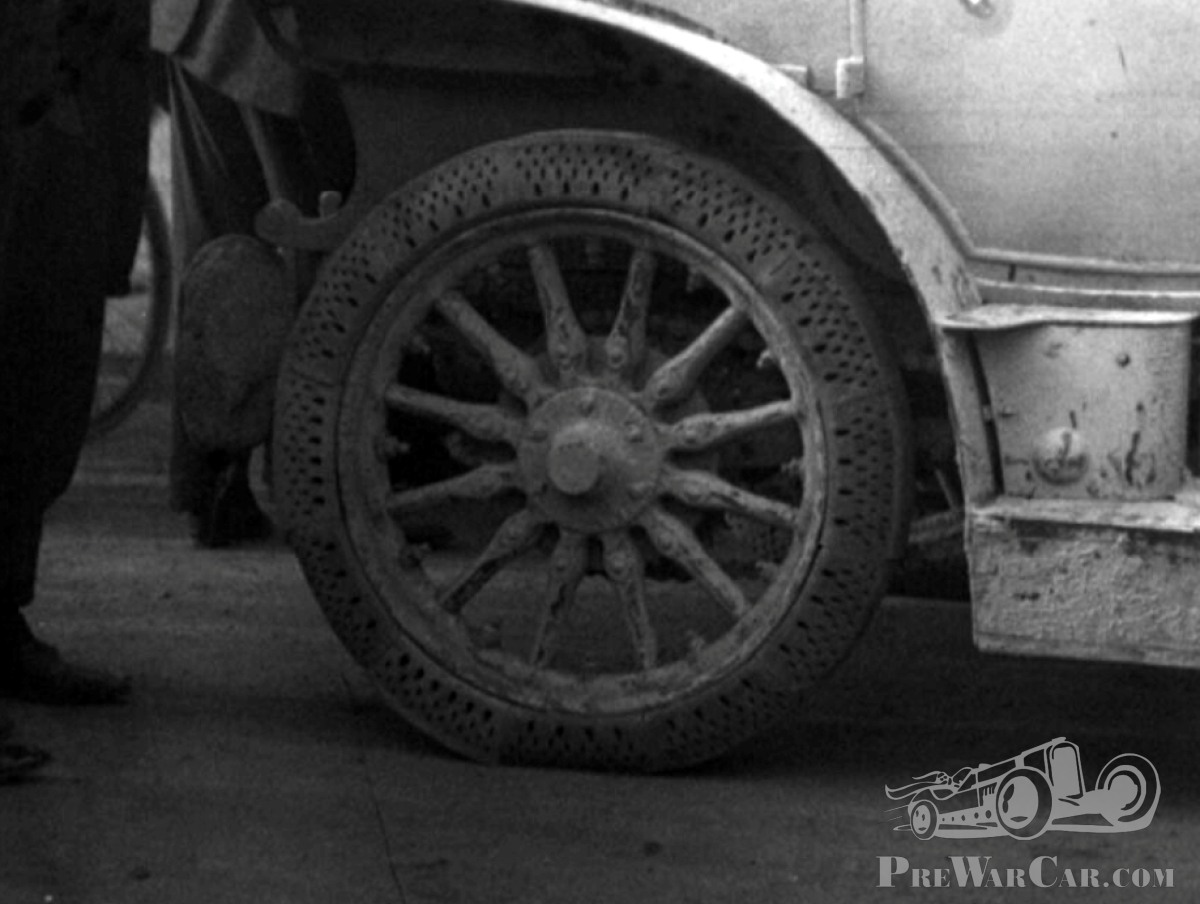

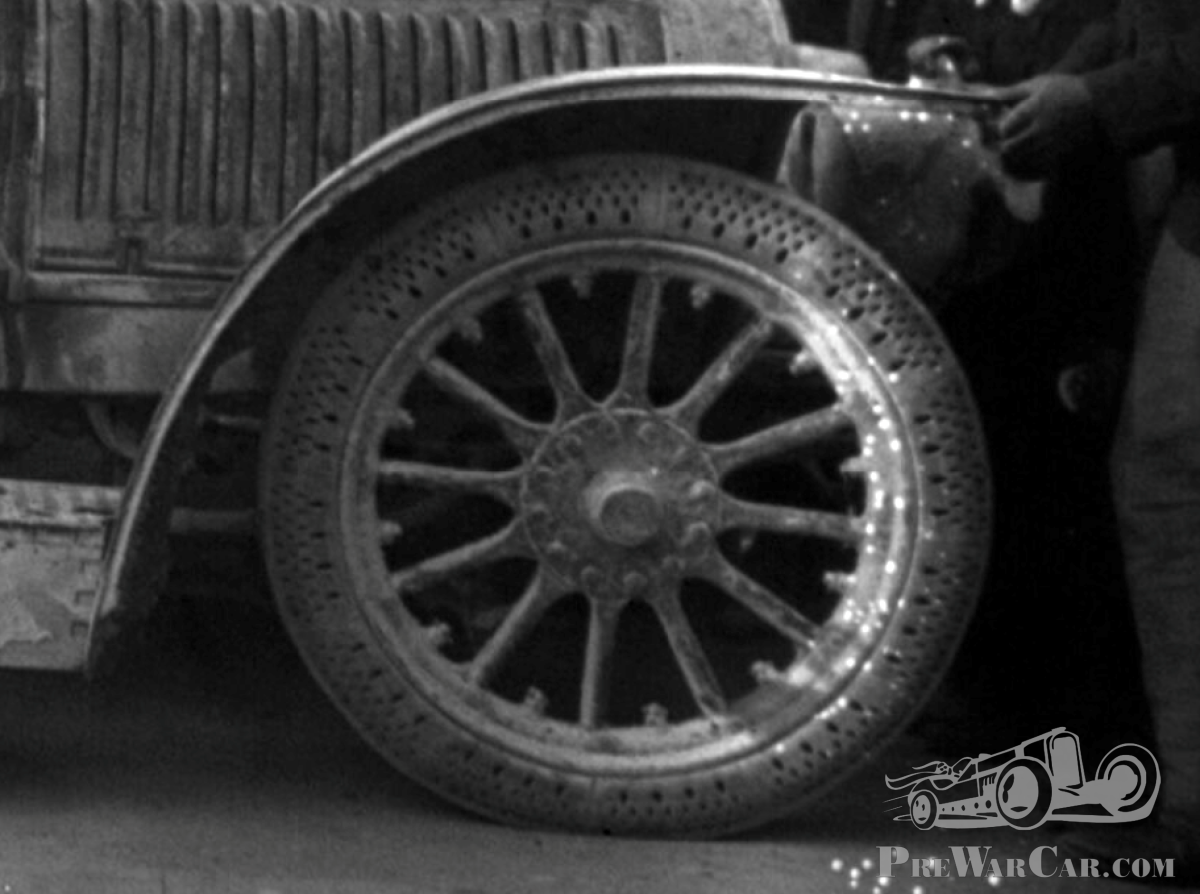

Before John Dunlop and the Michelin brothers took the tyre industry by storm, there were several clever folks who thought they’d come up with the best solution for the tyre problem. This picture was takes at a ‘Concours de roues et bandages élastiques’, or ‘rubber wheel contest’ held in April 1908 in France - an event you’d hardly imagine nowadays. But have a look at those tyres! What was the idea behind that? We’ve zoomed in on the separate ones for you to have a slightly better look.

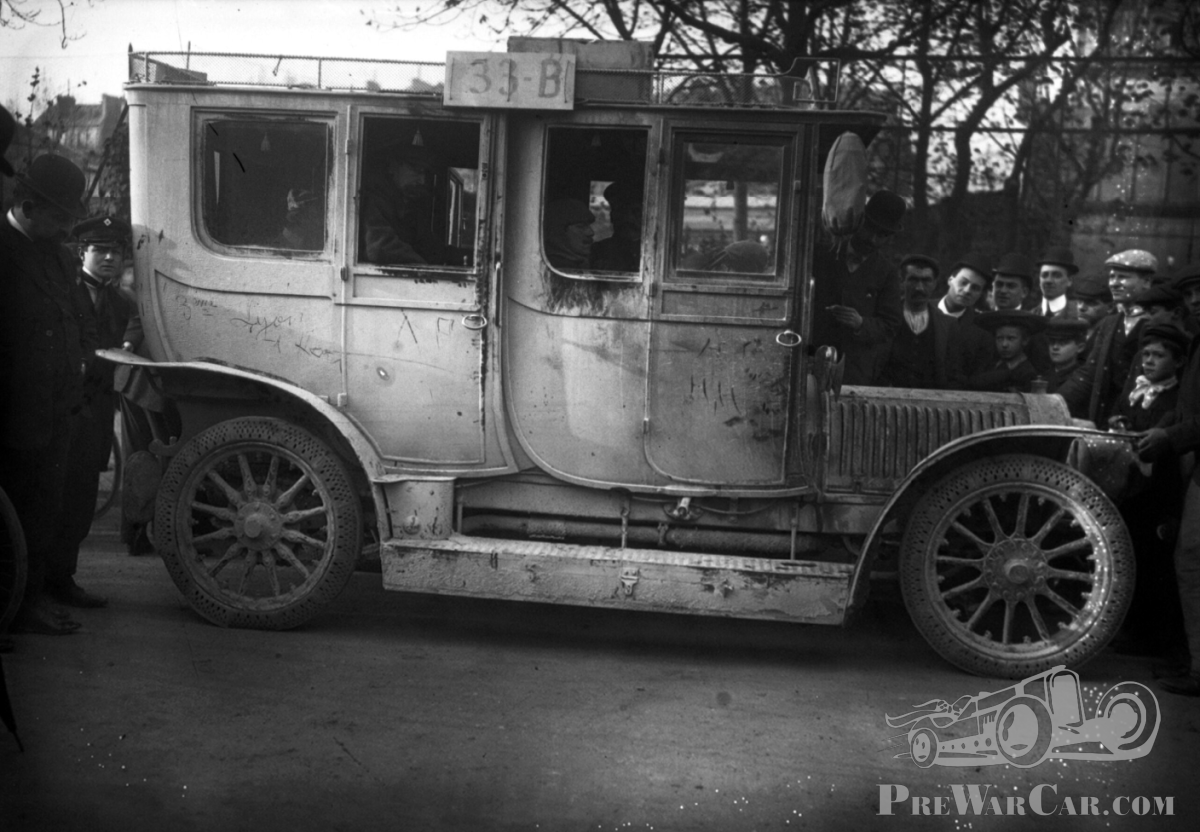

A well-used Delauney-Belleville

It’s also interesting to see that the vehicle wearing those tyres is not considered to be very important, or so it seems. For a concours you’d expect it to be given at least a wash. Or perhaps a respray would have been even more suitable in this case! The car is a Delaunay-Belleville and it can’t have been very old at the time of this concours, which makes it even more remarkable that it looks so...er... well used. Oh, and it was entered by a Monsieur or Madame Bidault but that’s all we know. It seems that the name Bidault hasn’t quite made history in the world of tyres.



Was this Delaunay-Belleville used as a taxi or a bus? We did come across a few pictures of similar looking cars but not quite like this one with its striking ‘double cab’ body and deep running boards. Any ideas?



(Words Jeroen Booij, picture Bibliothèque Nationale de France)



Pubblicato:
lunedì settembre 12th, 2022
Stef Van den Bergh
16 Settembre 2022, 20:46
On Google I found this postcard about the same car.
Per saperne di più
Jeroen Booij
20 Settembre 2022, 14:54
It was given a wash for the post card photographer!
Per saperne di più
Keith K. Kuehn
12 Settembre 2022, 18:42
Oh, I need to add that I forgot something! I also recently saw on youtube, where someone has , ha ha ha, "invented" this type of tire now for bicycles......
Per saperne di più
Keith K. Kuehn
12 Settembre 2022, 18:39
These ARE segmented tires. As I have learned, they also had beaded edges so they "popped" into the seat of the wheel rim, and a threaded bolt held them on. Really did make sense, though as a previous person has questioned, how long did they last? I'd love to find some for a car and try!
Another person mentions springs in the wheel. I recently came across a somewhat local car guy who tried these on I think his maxwell. They were fine as long as you were going straight, but any turn set up unsettling wobbling. They of course were taken off the car and now are just a curious display of early ideas!
I do love the coachwork on this car! Very elegant.....
Per saperne di più
Vincent van der Vinne
12 Settembre 2022, 17:24
From 1905 onwards, a major tyre problem arose. This was not because the tyres at that time were not good enough, but because cars were changing too quickly and the technology/quality of the tyres could not keep up with this development fast enough.

What was the case? From 1905 onwards, the engine power of the average car increased rapidly. Whereas around 1902 a 12 HP was the strongest car on the market, around 1905 this was more or less standard and around 1907 it was on the lighter side. The cars could therefore achieve higher speeds.
A second development was that the bodywork also developed rapidly at that time. Around 1902 a two-seater so or victoria was the standard and a four/five-seater open tonneau an expensive car. Shortly thereafter, the longer open touper (model roi des belges) became the most expensive model. But from 1903-1905, a new public entered the market, namely the well-to-do who let themselves be driven and for whom the car took the place of their coach. This new public was also interested in a closed car (coupe or landaulette). So between 1905 and 1907, with the use of more powerful engines and longer chassis, more and more larger and heavier closed cars appeared on the market. These cars were much heavier than before and could also reach fairly high speeds. The tyres could not cope with these high speeds, which meant that they often lasted no longer than a year. In addition, the tyres were very expensive, up to a quarter of the price of a car.
It was therefore understandable that the owners did not like this and a solution had to be found for the high cost of the tyres, by ensuring that they lasted longer and were of better quality. In the course of time, other manufacturers came up with solutions to strengthen pneumatic tyres or replace them with other constructions. At this time, for example, wheels were fitted with springs.
Per saperne di più
Ariejan Bos
12 Settembre 2022, 16:53
The tyres on the Delaunay-Belleville were called M.Y.G.-tyres (or Y.M.G., named after the inventors Yberly, Mérigoux and Goussard). They consisted of massive rubber tyre segments, of which in total 12 were mounted on a normal rim and the segments were transversally perforated to create air 'compartments'. This system was available for all car weight classes. In this trial, called the 'Concours de Roues et Bandages Élastiques, held in april 1908, they were present in three weight classes. The Delaunay of Bidault participated in Class B, 4th category, and weighed 2312 kilos.
The system was in a way comparable to that of L'Automatique Ducasble, which also consisted of massive tyres with air chambers.
Per saperne di più
David Burnett
12 Settembre 2022, 13:06
The car looks to be covered in fine (white? ) dust. Road dust from a road trial maybe?
Per saperne di più
John Bates
12 Settembre 2022, 13:04
I agree with Steve. They do NOT look pneumatic. I also agree that they look well thought out. They probably gave a smooth ride but how well they lasted I can't imagine. How well dis they stay on the rims? Using more modern materials and construction methods, would they work today?
Per saperne di più
Steve Diggins
12 Settembre 2022, 01:49
They look to be segmented and not pneumatic. They are rubber probably vulcanized to a shaped metal segment piece. They look well thought out. I wonder how they performed.
