The Australian Diff Mystery (UPDATE II: Ballot or Talbot?)

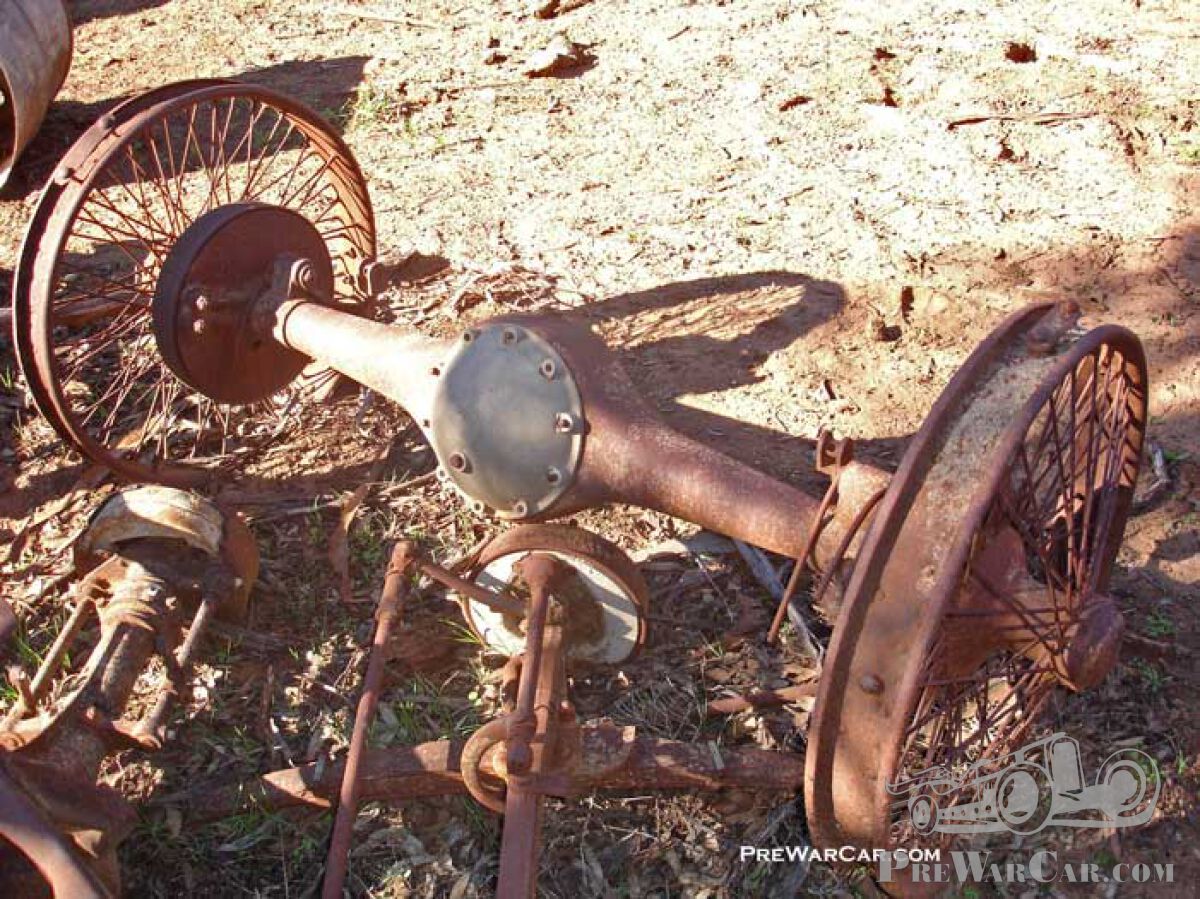

Craig Gillingham from Australia asks our help in identifying this differential (click main photo for larger picture). He writes: “I've been trying for quite a while, but with no success. I think it's off a French car, because it's got 'G' and 'D' on either hub cap. I remember figuring out that the wheels were either Rudge Whitworth 42's or 52's. There are no other markings apart from what looks like the serial number stamped into the alloy cover. I think it would be from something pre-1914. Also it looks like it had quarter elliptic springs? I thought it was from a large model Amilcar, but an Amilcar expert told me it wasn't. Could it possibly be Minerva? They seemed to be popular in Australia years ago.”
Who can help Craig?
Pubblicato:
domenica agosto 1st, 2010
Facebook
LinkedIn
Twitter
WhatsApp
Email
Copy
Commenti
Sconosciuto
11 Agosto 2010, 04:11
Sconosciuto
06 Agosto 2010, 06:53
To my ancient knowledge, Ballot only ever used semi-elliptic rear springs... this axle looks like a set-up for cantilever. Darracq/Talbot used cantilever rear springs very like Sunbeams of around 1925 onwards, but there are others....
Mike
Per saperne di più
Mike
Sconosciuto
05 Agosto 2010, 03:30
Hello Craig,
What is the distance between the spring hangers and what is the diameter of the wheels?
Tim
Per saperne di più
What is the distance between the spring hangers and what is the diameter of the wheels?
Tim
Sconosciuto
02 Agosto 2010, 09:23
Sorry I cannot help with the top axle, but the lower ones are clearly post-1926 Flatnose Morris which did sterling service across Australia in large numbers.
Per saperne di più
Sconosciuto
02 Agosto 2010, 08:00
Hi Craig., At first I thought it was one I have up the back..which has the same spring anchor and NO planetery gears inside, only a ratchet. it had a small egge cup size hubcat on one side with 'T' on it..and am told by experts it is from a small TALBOT..??..available to restorer..John Ryder..Coonabarabran 2357..
Per saperne di più
Sconosciuto
01 Agosto 2010, 23:20

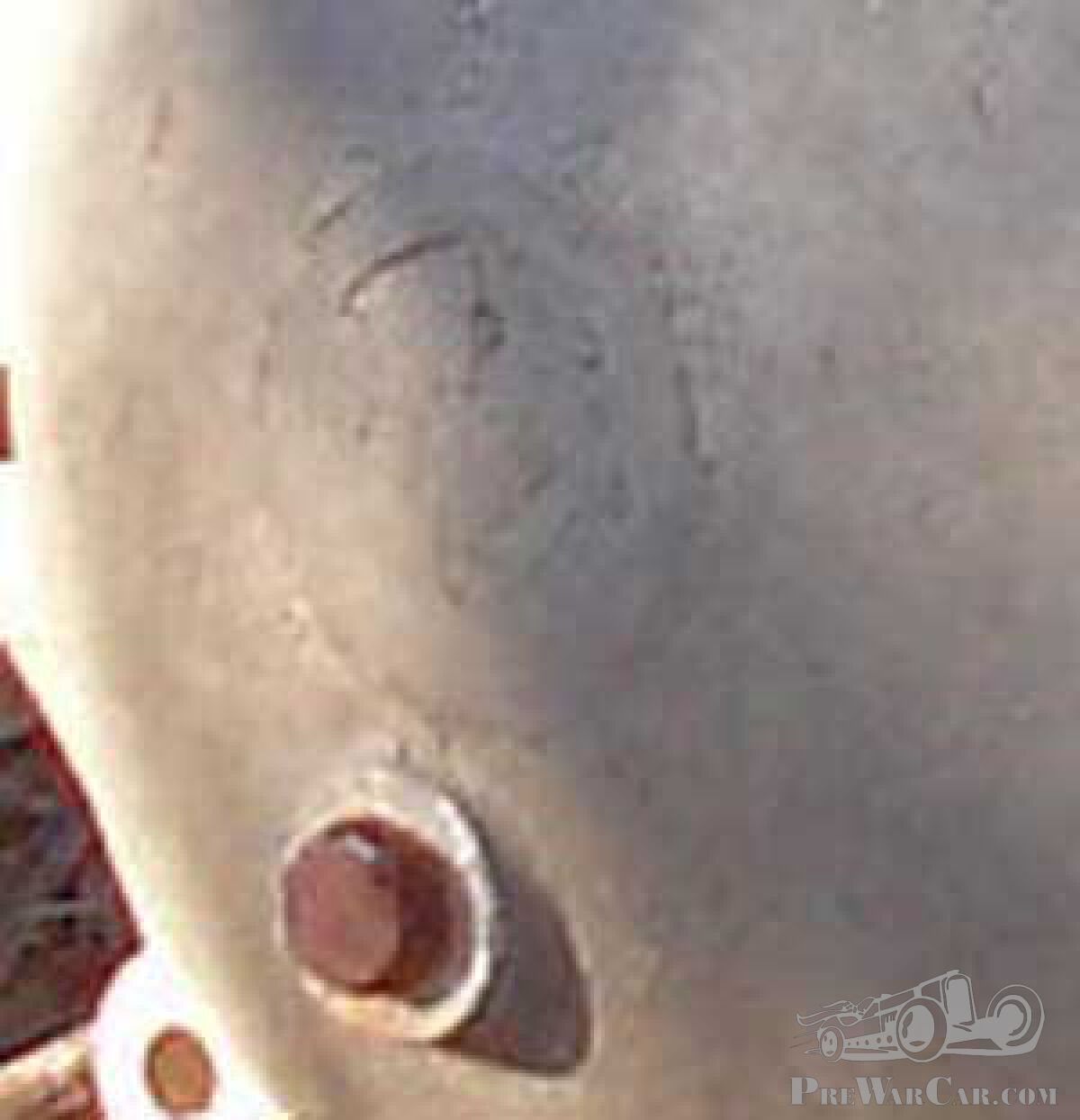

The stamp into the alloy cover on the diff looks like an inverted ship's anchor: I wonder if the axles are for a Ballot?
Per saperne di più
The axles at the bottom are certainly Morris Cowley, the one on the right a narrow track front axle. The one on the left, a wide track diff. I think the wide track Morris cars were sold in colonial countries; they were a few inches wider than the normal track car.
Thank you for the help so far.
